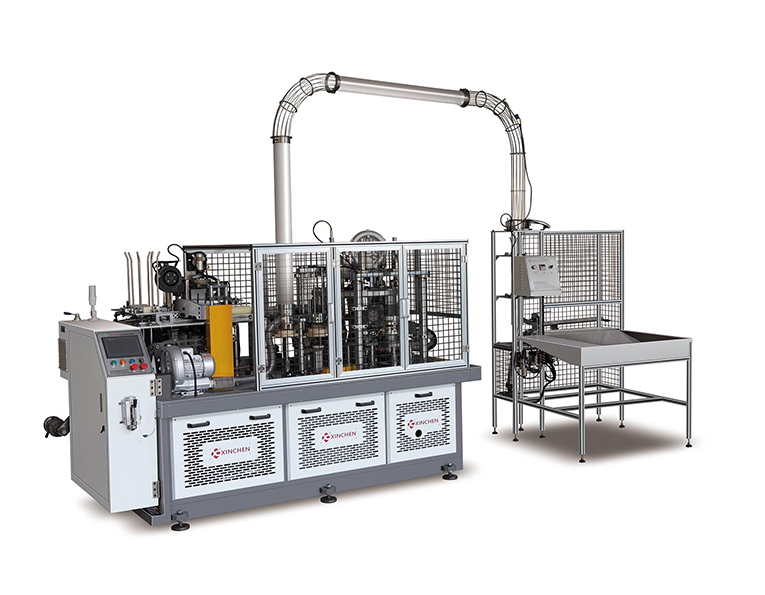

XC-B90 Middle Speed Paper Bowl Making Machine

Name: XC-B90 Middle Speed Paper Bowl Making Machine
Brand: XINCHEN
SKU: 00021
Rating: 4.9 (61 reviews)

XC-B90 Middle Speed Paper Bowl Machine adopts PLC and touch screen control, servo feeding and photoelectric detection. Ideal for the production of salad bowls, noodle bowls and packaging bowls.

The transmission part adopts the horizontal and vertical axis connection transmission structure,

The machine adopts PLC and touch screen control.

Capacity	60-80pcs/min
Paper materials	Single PE/double PE
Paper grammage	150-350g/m²

XC-B90 Middle Speed paper bowl making machine

REQUEST NOW

Description
Technical Parameters
Product Details
Components List

Description

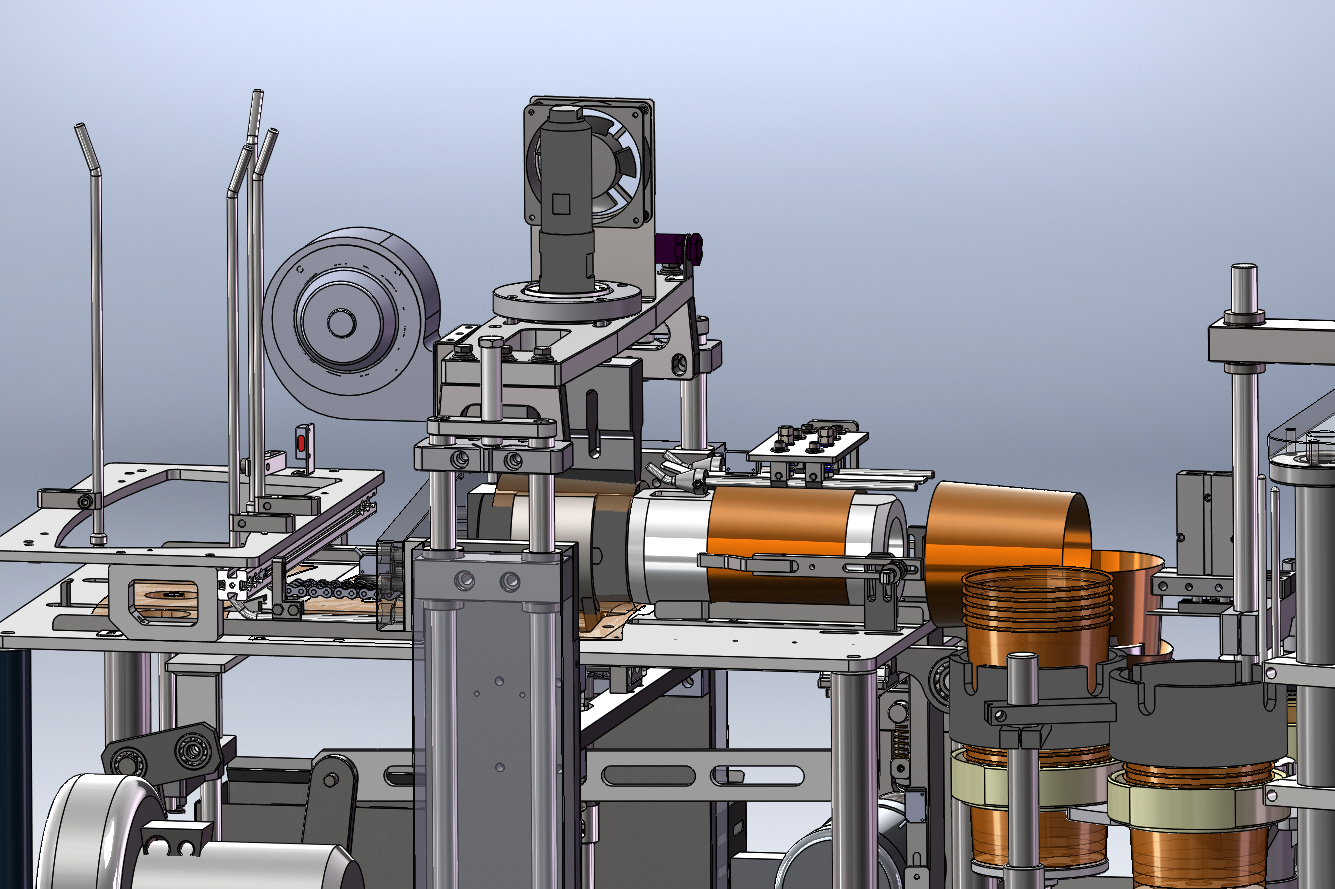

XC-B90 intelligent paper bowl machine adopts a desktop layout, with double-layer separation of transmission and forming. The transmission part adopts the horizontal and vertical axis connection transmission structure, the gears are transmitted in stages, and the mechanical lubrication is continuously supplied with oil. They are all installed in the frame under the table.

The forming mold is assembled above the table to avoid cross-contamination and facilitate cleaning and maintenance. Double turntable structure, the middle turntable can realize the functions of cup mouth silicone oil and waste discharge. The machine adopts PLC and touch screen control, servo feeding and photoelectric detection. Ideal for the production of salad bowls, noodle bowls and packaging bowls, such as large capacity, Large-diameter bowl-shaped container production equipment.

Technical Parameters

Model	XC-B90
Machine Weight	3500KG
Wooden case dimension	300015502000mm (LWH) 12307101950mm (Collect table)
Rated power	Three-phase,380V, 20KW
Compressed air	0.6-0.8MPa,0.4m³/min
Capacity	60-80pcs/min
Paper materials	Single PE/double PE
Paper grammage	150-350g/m²

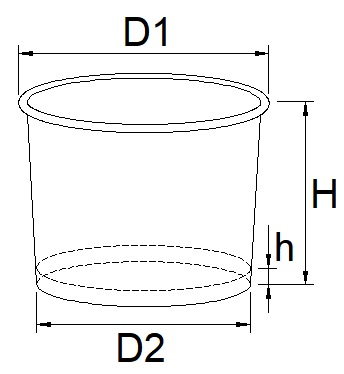

Product range	（D1）φ100-150mm (H)50-115mm
Product range	（D2）φ70-130mm (h)5-10mm

Product Details

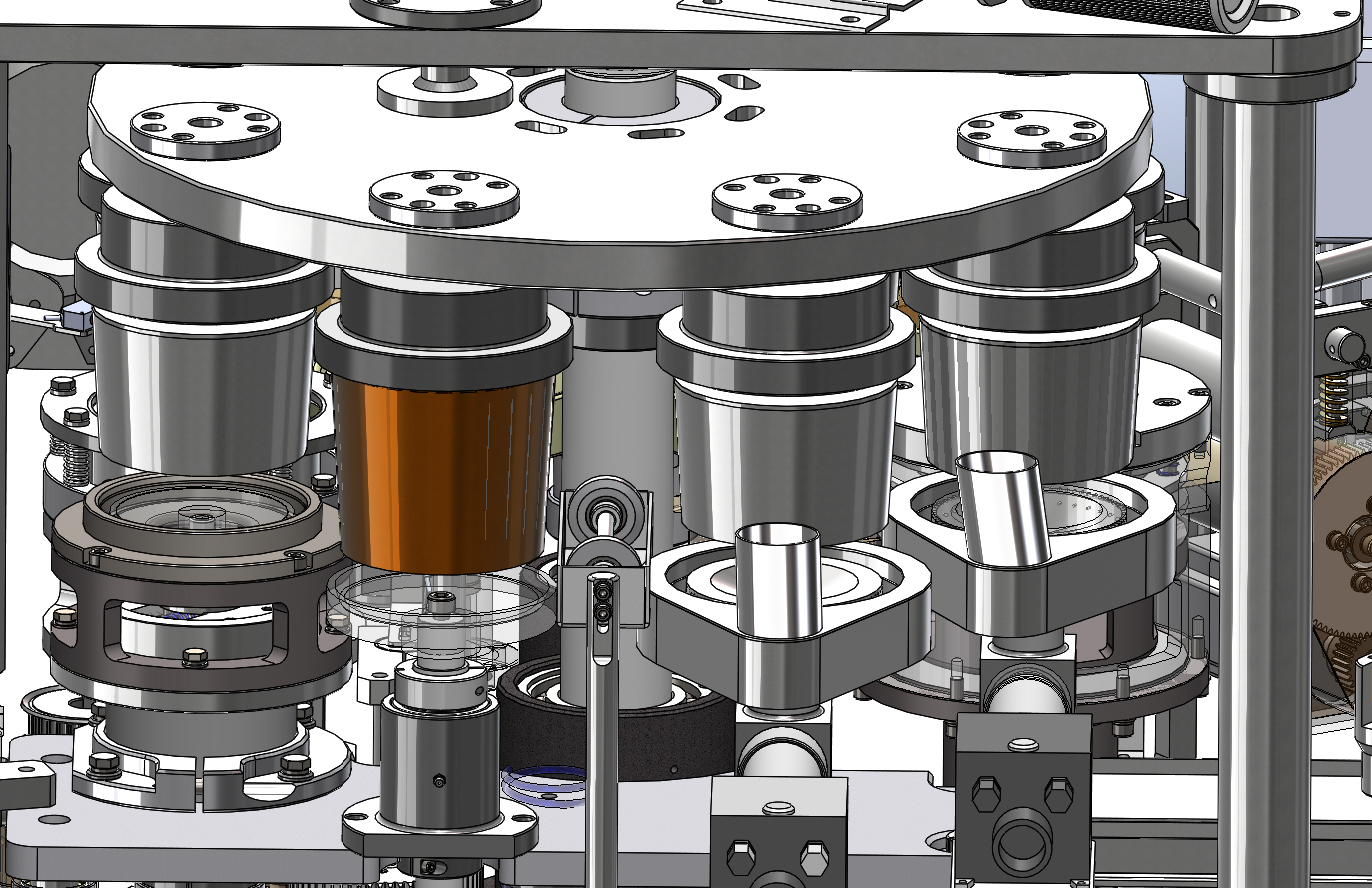

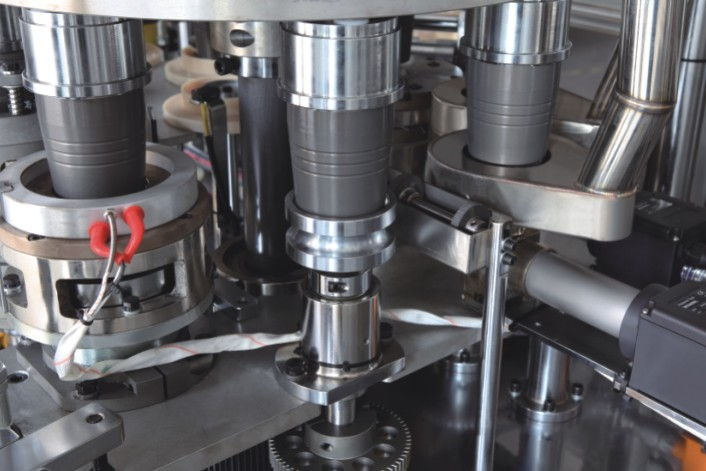

Bottom forming

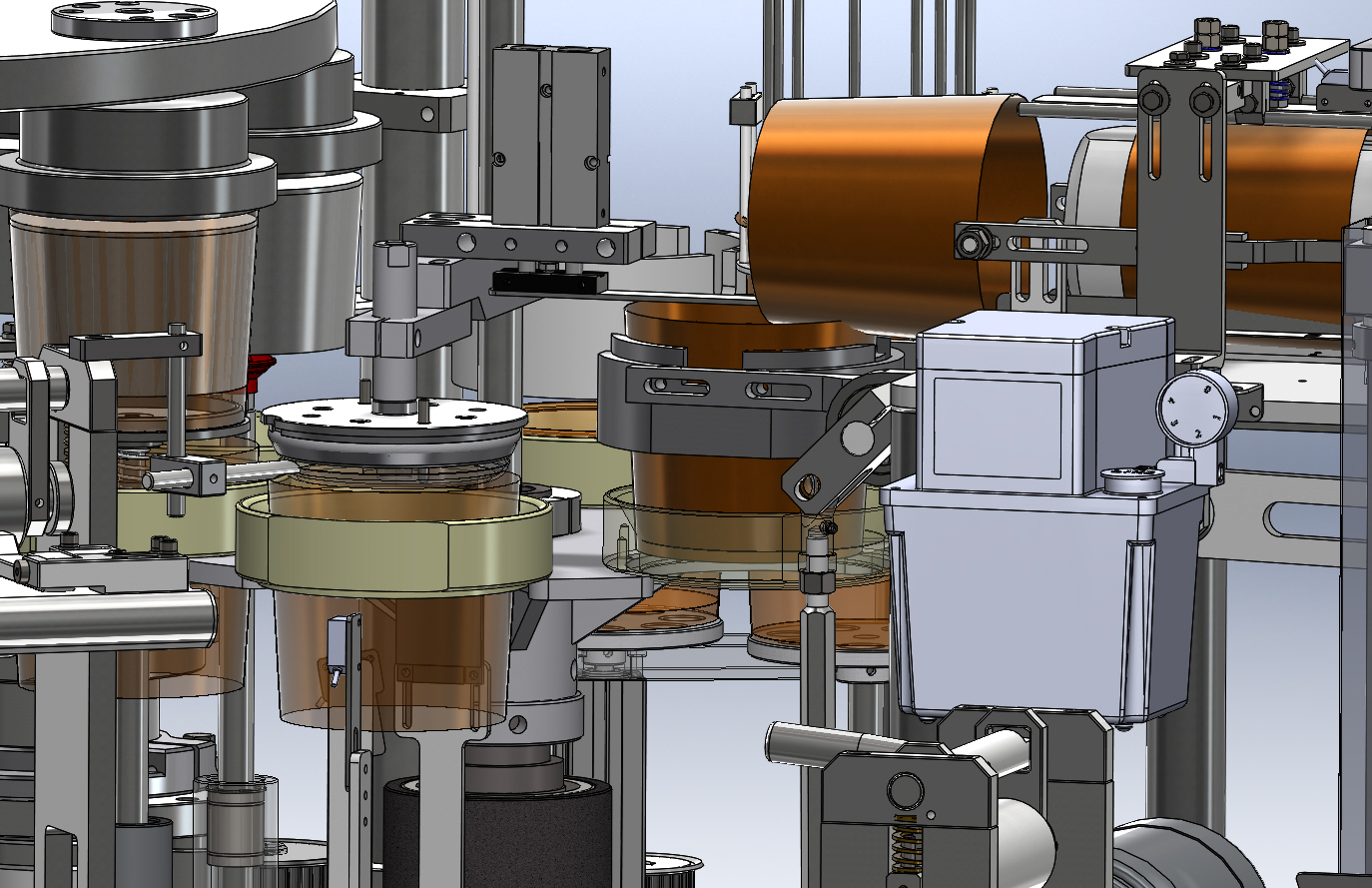

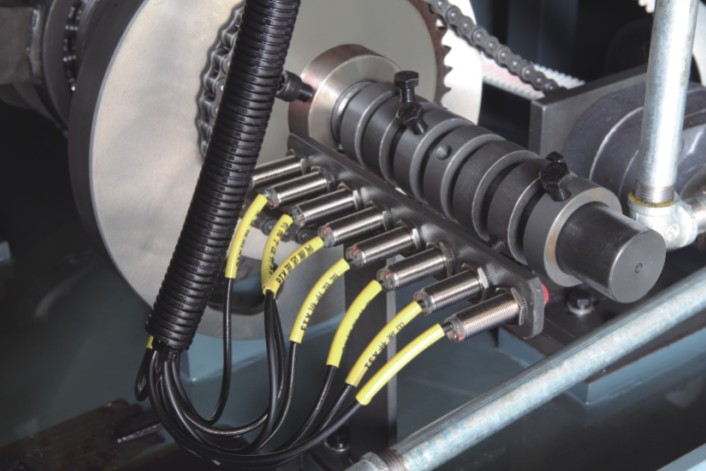

Oil supply system & Signal system

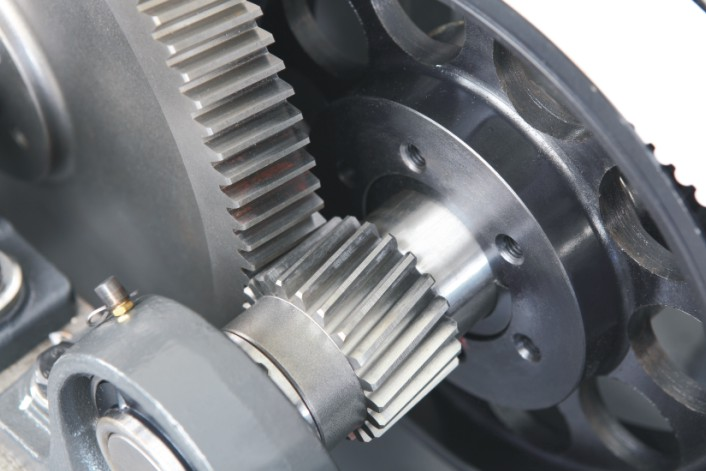

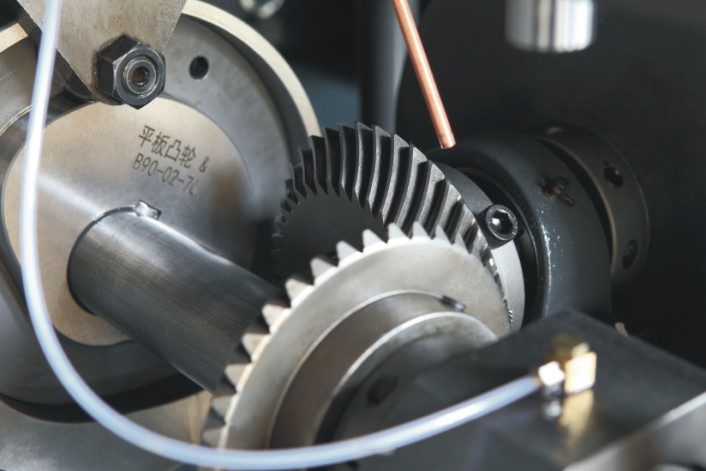

Bevel gear transmission part

Gear ratio system

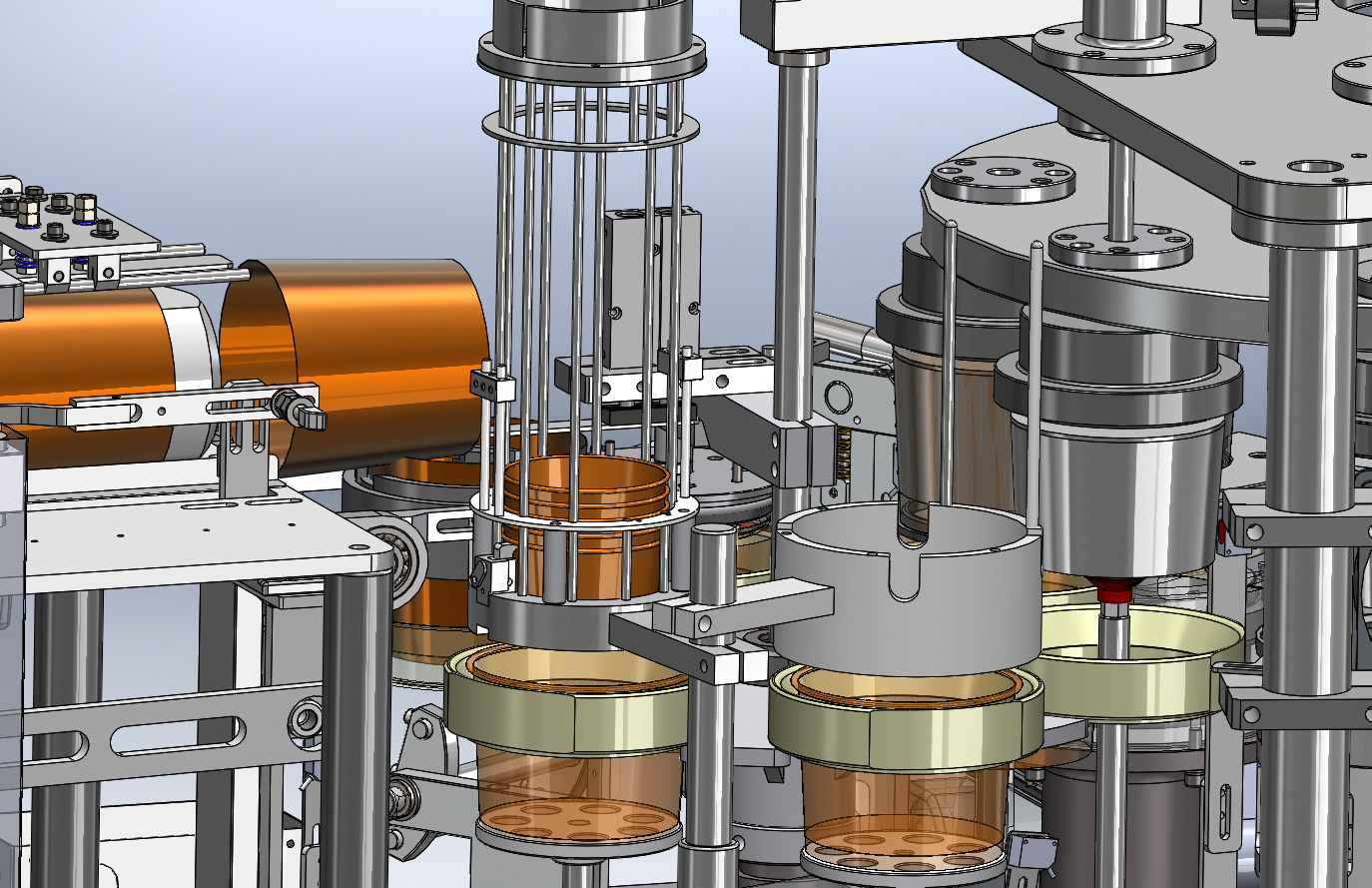

Cup top curling

Cup auto collect system

Knurling part

Ultrasonic sealing

Components List

NO.	Item	Name	Brand	Remarks
1	Electrical components	frequency transformer	Delta
2		ultrasonic	ChangRong
3		contactor	Schneider of France
4		servo system	Delta
5		air switch	Chint Electric
6		intermediate relay	Schneider of France
7		Photoelectric / proximity switch	Panasonnic
8		main motor	ZhongLong motor
9		Bottom curling	Unigroup motor
10		Bottom knurling	Unigroup motor
11		High pressure air pump	Gling electrical
12	pneumatic component	quick-change connector	AirTAC pneumatic
13		Solenoid valve / mechanical valve
14		air cylinder
15	machine arrangement	Disk cam	numerical control machining + finish grinding	40Cr forge (azotizing）
16		Disk cam	numerical control machining + finish grinding	20CrMnTi forge (tempering + carburizing and quenching)
17		High-speed intermittent divider	numerical control machining + finish grinding	20CrMnTi forge（tempering + carburizing and quenching）
18		Camshaft bearing	IKO
19		Straight line light axis	GCr15 optic axis（Chrome type）
20		linear guide rail	China famous brand
21		transmission shaft	40Cr tempering
22		Knife mold / roller wheel seat	Cr12MoV quench
23		turntable	aluminium alloy
24		joint bearing	China famous brand
25		bearing	Human bearing/NSK
