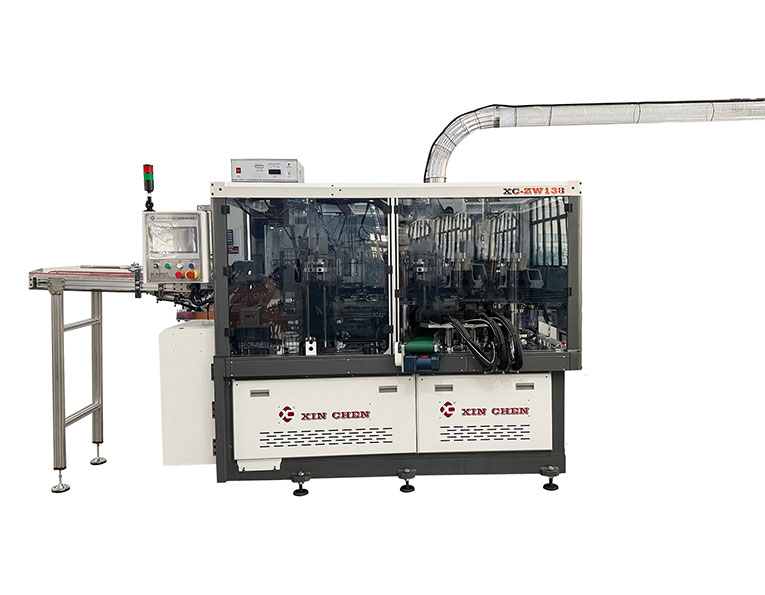

ZW-138 High Speed Intelligent Servo Paper Bowl Machine

Name: ZW-138 High Speed Intelligent Servo Paper Bowl Machine
Brand: XINCHEN
SKU: 00049
Rating: 4.9 (75 reviews)

This machine is a new generation product developed by us in response to market demands. It is driven by 6 servo motors, featuring high speed and high precision. It is the preferred choice for paper bowl manufacturers for mass production.

6 servo motors

Featuring high speed

High precision

Capacity	110-130pcs/min
Paper materials	Single PE/double PE
Paper grammage	210-360g/m²

ZW-138 High Speed Intelligent Servo Paper Bowl Machine

REQUEST NOW

Description
Technical Parameters
Product Details
Components List

Description

Technical Parameters

Model	ZW-138
Machine Weight	3800KG
Wooden case dimension	260018002050mm (LWH) 12307101950mm (Collect table)
Rated power	Three-phase,380V, 20KW
Compressed air	0.7-0.9MPa
Capacity	110-130pcs/min
Paper materials	Single PE/double PE
Paper grammage	210-360g/m²

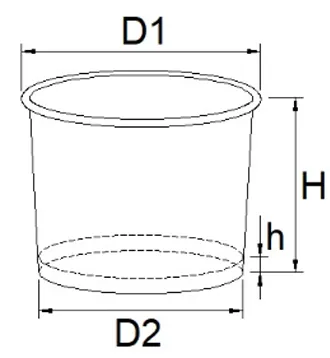

Product range	（D1）φ110-150mm (H)45-110mm
Product range	（D2）φ100-130mm (h)4-10mm

Components List

NO.	Item	Name	Brand	Remarks
1	Electrical components	frequency transformer	Delta
2		ultrasonic	ChangRong
3		contactor	Schneider of France
4		servo system	Delta
5		air switch	Chint Electric
6		intermediate relay	Schneider of France
7		Photoelectric / proximity switch	Panasonnic
8		main motor	ZhongLong motor
9		Bottom curling	Unigroup motor
10		Bottom knurling	Unigroup motor
11		High pressure air pump	Gling electrical
12	pneumatic component	quick-change connector	AirTAC pneumatic
13		Solenoid valve / mechanical valve
14		air cylinder
15	machine arrangement	Disk cam	numerical control machining + finish grinding	40Cr forge (azotizing）
16		Disk cam	numerical control machining + finish grinding	20CrMnTi forge (tempering + carburizing and quenching)
17		High-speed intermittent divider	numerical control machining + finish grinding	20CrMnTi forge（tempering + carburizing and quenching）
18		Camshaft bearing	IKO
19		Straight line light axis	GCr15 optic axis（Chrome type）
20		linear guide rail	China famous brand
21		transmission shaft	40Cr tempering
22		Knife mold / roller wheel seat	Cr12MoV quench
23		turntable	aluminium alloy
24		joint bearing	China famous brand
25		bearing	Human bearing/NSK
